This inverter offers a durable, reliable and convenient way to convert a wide variety of DC power sources to an AC current.It also can be use for charger battery from city power.
Specification:
| THCA3000 |
| Input | DC 12V |
| Working Voltage | 9.5V-15.5V |
| Efficiency | >95% |
| Charging current | 20A |
| Continuous power | 3000W |
| Peak power | |
| Output voltage | AC AC 220V |
| Output frequency | 50Hz ± 2Hz |
| Wave form | Modified sine wave |
| Thermal protection | ≥70℃ |
| Operating Temperature | 0℃～40℃ |
| Cooling | By fan |
| Alarm | Yes |
| Fuse | 30A*8 |
| Low voltage shutdown | ≥9.5V |
| Over voltage shutdown | ≤15.5V |
| | LED red light, automatic recovery |
| Overload: | LED red light, automatic recovery |
| High temperature: | LED red light, automatic recovery |
| Short circuit: | LED red light, automatic recovery |
| Reverse connect: | Blown fuse |
| Net weight | 6200g |
| Gross weight | 7100g |
| Size | 490*200*100mm |

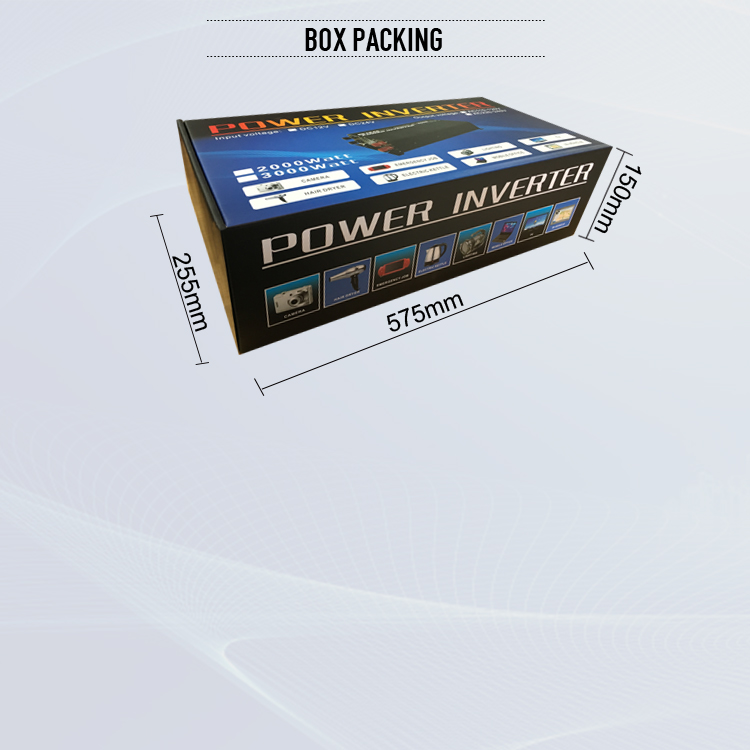

| Package size | 595*260*155mm |
| Carton | 510*485*550mm 4piece/carton |
| Application | Computer,Lighter,TV set,Fan,Car brige,Washing machine,Rice cooker,Travel,Camping,emergency |
Feature:
Soft Start
High surge capacity
Modified sine wave for up to 90% efficiency

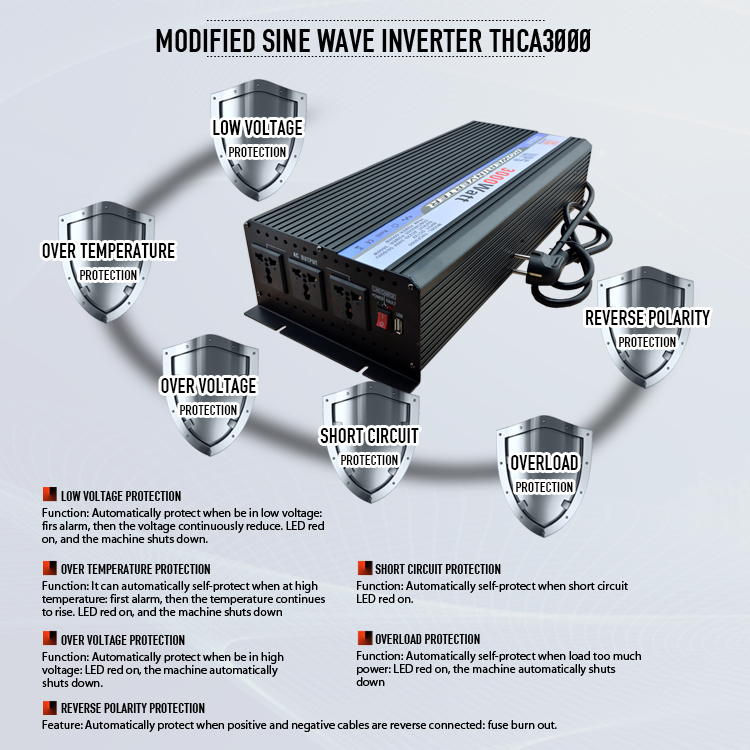

Protection from low/high voltage, high temperatures, Over load,Short circuit.Ground protection
One universal socket or European socket 500mA USB ports
Compact and durable aluminum case
Built-in high speed cooling fan
LED indicator light
Includes Direct-to-battery cables
CE & RoHs approved

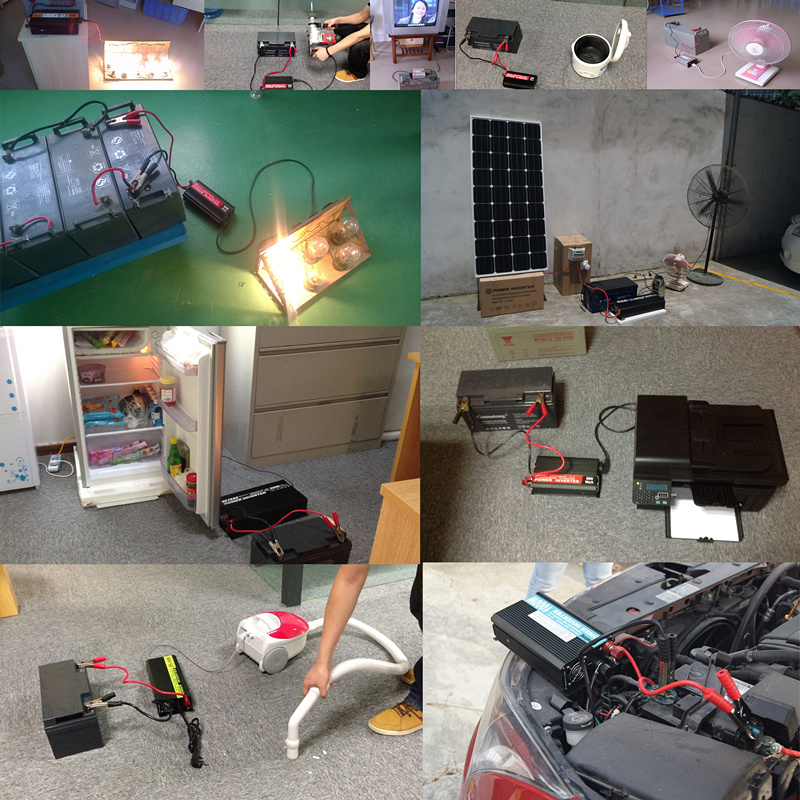

Application Reference:
| Application | Wattage | Inverter Wattage |
| 150W | 300W | 500W | 800W | 1000W | 2000W | 3000W | 4000W | 5000W |
| Mobile phone | 5W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 12 inch color television | 16W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Video games console | 20W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Electric light | 25W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Satellite TV receiver | 30W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CD or DVD player | 30W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| HiFi stereo 4-Head VCR | 40W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Guitar amplifier | 40W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Stereo system | 55W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Electric fan | 55W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Notebook | 60W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| GE 9 inch color TV/radio/cassette | 65W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 19 inch color TV | 80W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 20 inch TV/VCR combo] | 110W | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 27 inch color TV | 170W | | √ | √ | √ | √ | √ | √ | √ | √ |
| Stereo amplifier | 250W | | √ | √ | √ | √ | √ | √ | √ | √ |
| Home theater system | 400W | | | √ | √ | √ | √ | √ | √ | √ |
| Power drill | 400W | | | √ | √ | √ | √ | √ | √ | √ |
| Rice cooker | 500W | | | √ | √ | √ | √ | √ | √ | √ |
| Small coffee machine | 600W | | | | √ | √ | √ | √ | √ | √ |
| Refrigerator | 750W | | | | √ | √ | √ | √ | √ | √ |
| Small microwave oven | 800W | | | | √ | √ | √ | √ | √ | √ |
| Toaster | 1000W | | | | | √ | √ | √ | √ | √ |
| Hair dryer | 1000W | | | | | | √ | √ | √ | √ |
| Full size microwave oven | 1500W | | | | | | √ | √ | √ | √ |
| Electric kettle | 1800W | | | | | | √ | √ | √ | √ |
| Induction cooker | 2000W | | | | | | √ | √ | √ | √ |
| washing machine | 2500W | | | | | | | √ | √ | √ |
| Air conditioner 16000BTU | 2500W | | | | | | | | √ | √ |
| Air compressor 3HP | 2800W | | | | | | | | √ | √ |
| Heavy duty power tools | 2800W | | | | | | | | √ | √ |
We supply Power Inverter,Solar charge controller for Home&Business with high quality and competitive price.
As a Professional Manufacturers , OEM and ODM orders are welcomed. We can produce your styles with a reasonable price,and good quality can be promised. Before production, we can make a sample and send to you to test the quality. Professional service and experienced workers in our factory!
Hope to cooperate with you!
GuangZhou HanFong New Energy Technology Co., Ltd.
Leo Au-Yeung
E-mail: leo@hanfong.net
Skype: leo7058
Cellphone/Facebook/WhatsApp/WeChat: +86 18665058012
Betty Yang
E-mail: bettyyang@hanfong.net
Cellphone/Facebook/WhatsApp/WeChat: +86 18148948012
|
|
HanFong 3000w Power Inverter With Charger, DC to AC Solar Power Inverters with Charger Inversor de la energía, inversor Images
|
