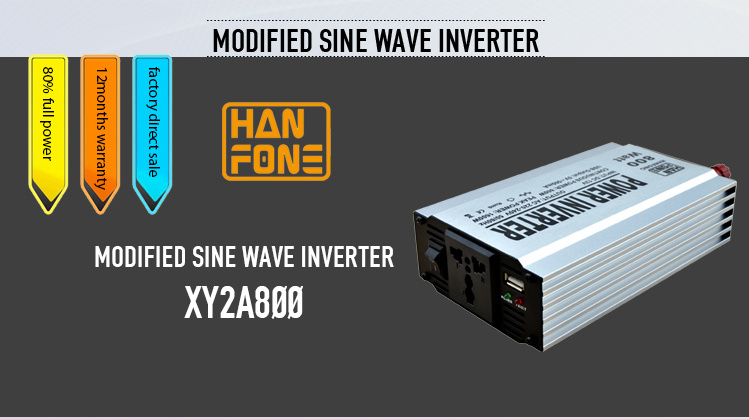

XY2A Series Power Inverter
This power inverter is modified sine wave inverter which converts DC power to AC power.
Features:
●Grounding line protection device: the inverter with grounding device, to improve the security of use;
●Low interference: avoid the use of high-end precision instruments produced when with interference phenomenon;
●Temperature control fan without noise, in full load when the environment temperature is not more than 26 ℃, fan doesn't start, no noise no fever and normal use;
●Isolated output;
●External fuses;
●USB charging port +5VDC, 500mA;
●Battery low voltage alarm;
●Cool surface design;
●Cooling fins and load controlled fan;
●Low interference technology;

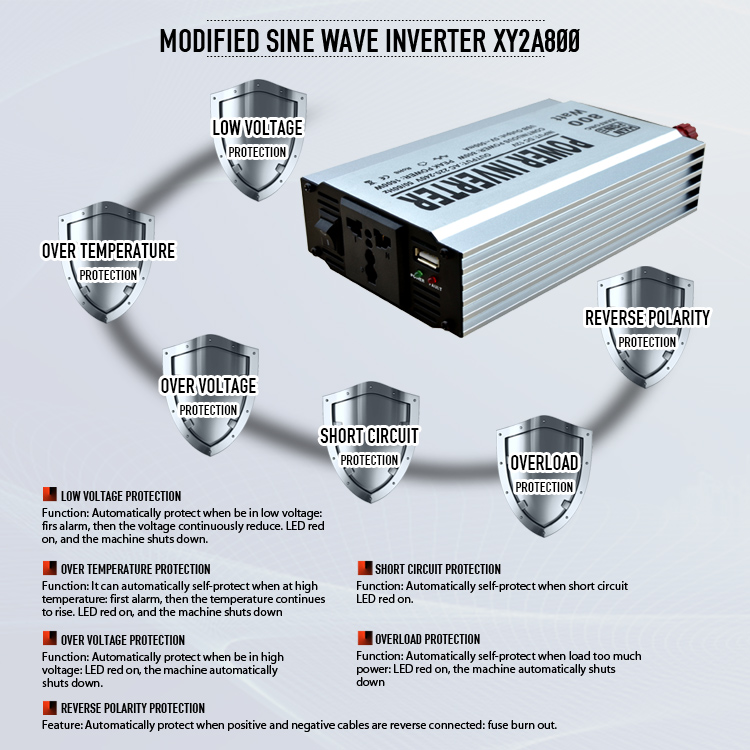

●Protection including: Low /over voltage, over load, short circuit, high temperature.
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
Specifications:
| Model | XY2A800 | XY2B800 | XY2C800 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 66.7A | 33.3A | 16.7A |
| Conversion Efficiency | >90% |
| Continuous Power | 800W |
| Peak Power | 1600W |
| Output Voltage | AC110-120V/220-240V |
| Output Frequency | 50Hz-60Hz±2Hz |
| Output Current | 7.3A/3.6A |
| Wave Form | Modified Sine Wave |
| Thermal Protection | ≥70℃ |
| Operating Temperature | 0℃～40℃ |
| Cooling | By Intelligent Fan |
| Under Voltage | 10±1V | 20±1V | 40±1V |
| Over Voltage | 15±1V | 30±1V | 60±1V |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery |
| | Overvoltage: LED red light, restart recovery |
| | Overload,high temperature: LED red light, restart recovery |
| Net Weight | 700g |
| Gross Weight | 940g |
| Size | 200*105*49mm |
| Box size | 245*220*120mm |
| Carton | 500*420*320mm 20Pieces/Carton |
